Description
Price: $71.90 - $79.99
(as of Dec 18, 2024 20:49:13 UTC – Details)
Product Description

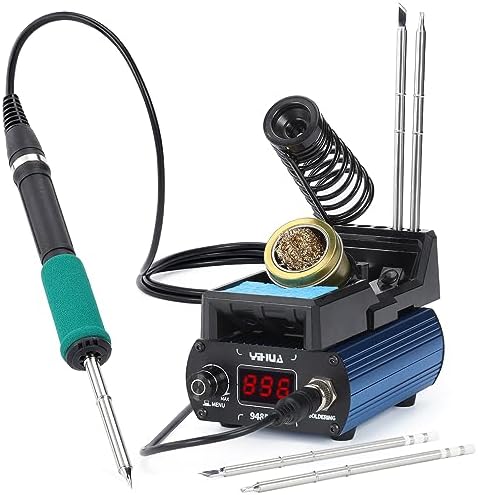

The YIHUA 948DB+ II Digital Soldering Station Kit includes:
1 x YIHUA 948DB+ II Main Unit
1 x Soldering Handpiece (T12 Compatible)
1 x Type-K Soldering Tip
1 x Type-B Soldering Tip

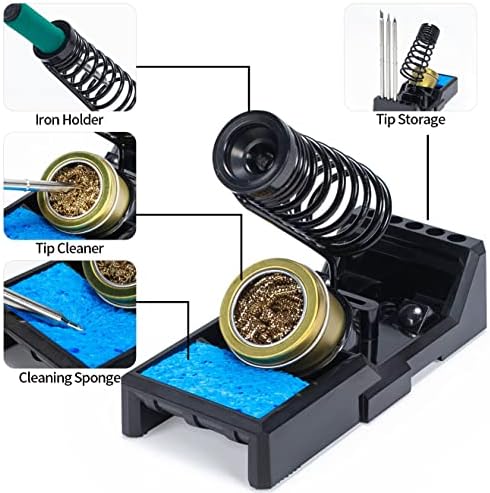

1 x Soldering Iron Holder
1 x Power Cord
1 x Cleaning Sponge
1 x Tip Cleaner

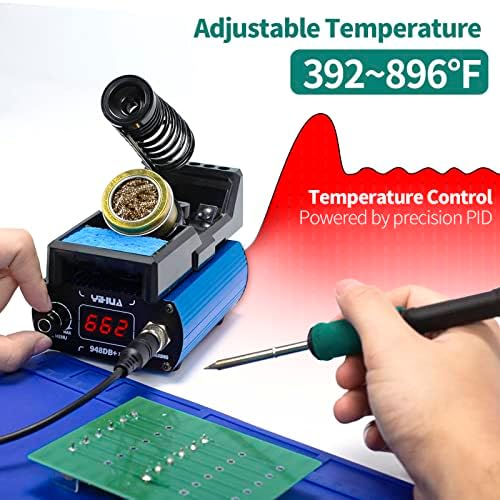

Temperature Control
Powered by precision PID program to keep the temperature steady while solderingContinuously detecting and compensating in just milliseconds per intervalGives you a much smoother soldering experience
High Performance Soldering Tip
Integrated with the heating elementImproves heating performance and temperature measurement accuracy significantlyMakes tip changes much easier for users
Performance
Tip-over-heating-element DesignRoom temp. to 660°F in 5 seconds392~896°F Adjustable

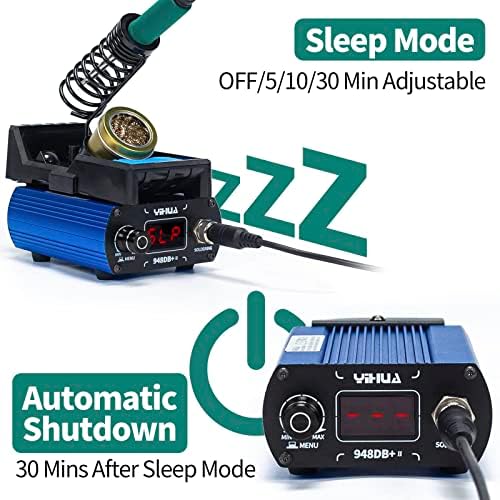

Sleep Mode
Activates when non use is detected, cooling the iron to 392°F to reduce wear and extend lifespan. OFF/5/10/30 minutes adjustable.
Automatic Shutdown
Under sleep mode, activates when further non-use for 30 minutes is detected. This function prevents any safety hazards when users accidentally leave the station turned ON for an extended period.
°F-°C Conversion
You can use your preferred temperature unit for your soldering work.
Temperature Calibration
Built for users with needs for absolute precision when soldering. Simply enter the measured temperature in the calibration interface, and the station will do the math for you. No manual calculation and offsetting needed.
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Add to Cart
Customer Reviews
4.5 out of 5 stars
1,613
—
—
—
—
—
Price
$89.99$89.99 $16.99$16.99 $9.99$9.99 $9.99$9.99 $9.99$9.99 $9.99$9.99
Category
Soldering Station(Advanced Version) Soldering Iron Replacement Compatible with YIHUA 948DB+ II Soldering Iron Replacement Compatible with YIHUA 948DB+ II Soldering Iron Replacement Compatible with YIHUA 948DB+ II Soldering Iron Replacement Compatible with YIHUA 948DB+ II Soldering Iron Tip Compatible with YIHUA 948DB+ II
Rated Power
22W(Max. 220W)
Temperature Range
392℉~896℉
Display
LCD
PID Temperature Stabilization
✓
Temperature Calibration
✓
Sleep Mode
✓
Specifications
Model 948DB+ II Rated voltage range 110V-240V~ Rated frequency 50Hz-60Hz Rated power 75w Main unit dimensions L142 x W94 x H50mm 士 5mm Temperature range 200℃~480℃/392°F～896°F Display LED Nixie Tube Tip to ground resistance <2 ohms
The YIHUA 948DB+ II digital soldering station uses a rapid heating soldering tip, and is able to heat to 660°F in just 5 seconds. Temperature adjustable from 392~896°F, and comes with PID program to keep the set temperature stabilized.
This soldering iron kit includes: 1 main unit, 1 soldering iron holder, 2 soldering tips (T12 soldering station compatible), 1 power cord. We designed the main soldering station unit to provide powerful performance while keeping minimal foot print, the compact unit has a dimension of 11.9mm x 9.4mm x 4.3mm (4.7”x3.7”x1.7” inches).

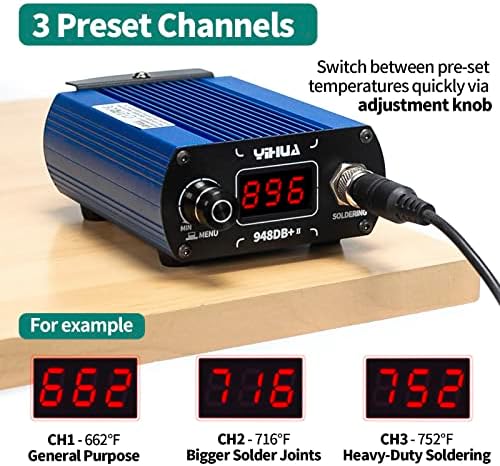

Built with °F-°C conversion function for easy temperature reference; sleep mode to reduce wear for the solder iron; automatic shutdown to improve user safety; 3 preset channels for quick and easy temperature changes; temperature calibration function to correct soldering iron station’s actual temperature if needed.

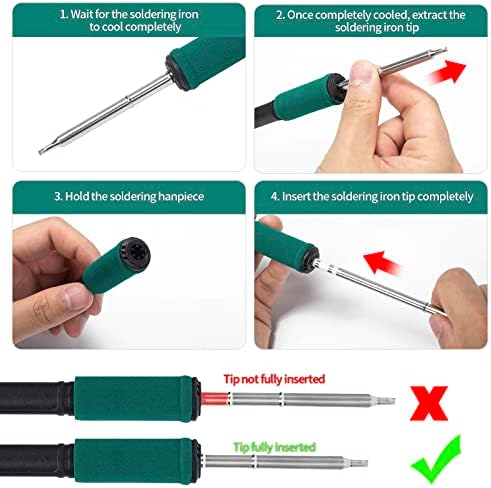

The soldering gun’s tip can be extracted and inserted quickly thanks to the new tip-over-heating-element design. This new design puts the temperature sensor much closer to the tip as compared to conventional soldering iron, providing more accurate actual tip temperature and temperature feedback.
Choose YIHUA with Confidence – Enjoy our 12-month US- exclusive manufacturer technical coverage and 24/7 professional assistance on Amazon. Note: This model is designed to operate on 110-240V with a US-standard power plug.
